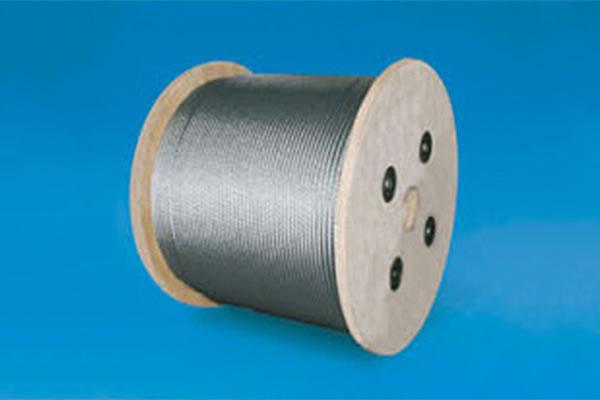

Cable de acero para uso general
Aplicación

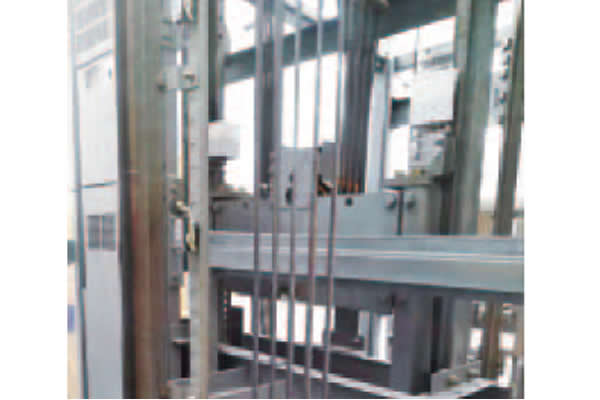

El cable de acero para uso general de Fasten es muy versátil y se puede usar para casi todo tipo de aplicaciones principalmente en grúas, elevadores y propósitos de ingeniería general.
Características
1. Flexible y fácil de usar, se utiliza para gran cantidad de propósitos
2. Fabricado de acuerdo a DIN, y también se pueden hacer de forma personalizada.
Estructura del producto
-
6×19-FC -
6×19-IWR -
7×19
| Diámetro nominal (mm) | Peso aproximado | Resistencia a la tensión nominal Mpa | ||||||||||
| 1570 | 1670 | 1770 | 1870 | 1960 | ||||||||
| Carga de rotura mínima KN | ||||||||||||
| D | FC (núcleo de fibra) | IWR/IWS (núcleo de acero) |
FC (núcleo de fibra) |
IWR/IWS (núcleo de acero) |
FC (núcleo de fibra) |
IWR/IWS (núcleo de acero) |
FC (núcleo de fibra) |
IWR/IWS (núcleo de acero) |
FC (núcleo de fibra) |
IWR/IWS (núcleo de acero) |
FC (núcleo de fibra) |
IWR/IWS (núcleo de acero) |
| mm | kg/100m | KN | ||||||||||
| 3.00 | 3.03 | 3.43 | 4.34 | 4.69 | 4.61 | 4.99 | 4.89 | 5.29 | 5.17 | 5.59 | 5.41 | 5.85 |
| 4.00 | 5.39 | 6.10 | 7.71 | 8.34 | 8.20 | 8.87 | 8.69 | 9.40 | 9.19 | 9.93 | 9.62 | 10.40 |
| 5.00 | 8.43 | 9.53 | 12.00 | 13.00 | 12.80 | 13.90 | 13.60 | 14.70 | 14.40 | 15.50 | 15.00 | 16.20 |
| 6.00 | 12.10 | 13.70 | 17.40 | 18.80 | 18.50 | 20.00 | 19.60 | 21.20 | 20.70 | 22.40 | 21.60 | 23.40 |
| 7.00 | 16.50 | 18.70 | 23.60 | 25.50 | 25.10 | 27.20 | 26.60 | 28.80 | 28.10 | 30.40 | 29.40 | 31.80 |
| 8.00 | 21.60 | 24.40 | 30.80 | 33.40 | 32.80 | 35.50 | 34.80 | 37.60 | 36.70 | 39.70 | 38.50 | 41.60 |
| 9.00 | 27.30 | 30.90 | 39.00 | 42.20 | 41.50 | 44.90 | 44.00 | 47.60 | 46.50 | 50.30 | 48.70 | 52.70 |
| 10.00 | 33.70 | 38.10 | 48.20 | 52.10 | 51.30 | 55.40 | 54.30 | 58.80 | 57.40 | 62.10 | 600.00 | 65.00 |
| 11.00 | 40.80 | 46.10 | 58.30 | 63.10 | 62.00 | 67.10 | 65.80 | 71.10 | 69.50 | 75.10 | 72.80 | 78.70 |
| 12.00 | 48.50 | 54.90 | 69.40 | 75.10 | 73.80 | 79.80 | 78.20 | 84.60 | 82.70 | 89.40 | 86.60 | 93.70 |
| 13.00 | 57.00 | 64.40 | 81.50 | 88.10 | 86.60 | 93.70 | 91.80 | 99.30 | 97.00 | 105.00 | 101.00 | 110.00 |
| 14.00 | 66.10 | 74.70 | 94.50 | 102.00 | 100.00 | 109.00 | 107.00 | 115.00 | 113.00 | 122.00 | 118.00 | 127.00 |
| 16.00 | 86.30 | 97.50 | 123.00 | 133.00 | 131.00 | 142.00 | 139.00 | 150.00 | 147.00 | 159.00 | 154.00 | 166.00 |
| 18.00 | 109.00 | 123.00 | 156.00 | 169.00 | 166.00 | 180.00 | 176.00 | 190.00 | 186.00 | 201.00 | 195.00 | 210.00 |
| 20.00 | 135.00 | 152.00 | 193.00 | 208.00 | 205.00 | 222.00 | 217.00 | 235.00 | 230.00 | 248.00 | 240.00 | 260.00 |
| 22.00 | 163.00 | 184.00 | 233.00 | 252.00 | 248.00 | 268.00 | 263.00 | 284.00 | 2787.00 | 300.00 | 291.00 | 315.00 |
| 24.00 | 194.00 | 219.00 | 278.00 | 300.00 | 295.00 | 319.00 | 313.00 | 338.00 | 331.00 | 358.00 | 346.00 | 374.00 |
| 26.00 | 228.00 | 258.00 | 326.00 | 352.00 | 347.00 | 375.00 | 367.00 | 397.00 | 338.00 | 420.00 | 406.00 | 440.00 |
| 28.00 | 264.00 | 299.00 | 378.00 | 409.00 | 402.00 | 435.00 | 426.00 | 461.00 | 450.00 | 487.00 | 471.00 | 510.00 |
| 30.00 | 303.00 | 343.00 | 434.00 | 469.00 | 461.00 | 499.00 | 489.00 | 529.00 | 517.00 | 559.00 | 541.00 | 585.00 |
| 32.00 | 345.00 | 390.00 | 494.00 | 534.00 | 525.00 | 568.00 | 556.00 | 602.00 | 588.00 | 636.00 | 616.00 | 666.00 |
| 34.00 | 390.00 | 440.00 | 557.00 | 603.00 | 593.00 | 641.00 | 628.00 | 679.00 | 664.00 | 718.00 | 695.00 | 752.00 |
| 36.00 | 437.00 | 494.00 | 625.00 | 676.00 | 664.00 | 719.00 | 704.00 | 762.00 | 744.00 | 805.00 | 780.00 | 843.00 |
| 38.00 | 487.00 | 550.00 | 696.00 | 753.00 | 740.00 | 801.00 | 785.00 | 849.00 | 829.00 | 896.00 | 869.00 | 940.00 |
| 40.00 | 539.00 | 610.00 | 771.00 | 834.00 | 820.00 | 887.00 | 869.00 | 940.00 | 919.00 | 993.00 | 963.00 | 1040.00 |
Estructura del producto
-
6×37-FC -
6×37-IWR -
7×37
| Diámetro nominal (mm) | Peso aproximado | Resistencia a la tensión nominal Mpa | ||||||||||
| 1570 | 1670 | 1770 | 1870 | 1960 | ||||||||
| Carga de rotura mínima KN | ||||||||||||
| D | FC (núcleo de fibra) | IWR/IWS (núcleo de acero) |
FC (núcleo de fibra) |
IWR/IWS (núcleo de acero) |
FC (núcleo de fibra) |
IWR/IWS (núcleo de acero) |
FC (núcleo de fibra) |
IWR/IWS (núcleo de acero) |
FC (núcleo de fibra) |
IWR/IWS (núcleo de acero) |
FC (núcleo de fibra) |
IWR/IWS (núcleo de acero) |
| mm | kg/100m | KN | ||||||||||
| 6.00 | 12.10 | 13.70 | 16.70 | 18.00 | 17.70 | 19.20 | 18.80 | 20.30 | 19.90 | 21.50 | 20.80 | 22.50 |
| 7.00 | 16.50 | 18.70 | 22.70 | 24.50 | 24.10 | 26.10 | 25.60 | 27.70 | 27.00 | 29.20 | 28.30 | 30.60 |
| 8.00 | 21.60 | 24.40 | 29.60 | 32.10 | 31.50 | 34.10 | 33.40 | 36.10 | 35.30 | 38.20 | 37.00 | 40.00 |
| 9.00 | 27.30 | 30.90 | 37.50 | 40.60 | 39.90 | 43.20 | 42.30 | 45.70 | 44.70 | 48.30 | 46.80 | 50.60 |
| 10.00 | 33.70 | 38.10 | 46.30 | 50.10 | 49.30 | 53.30. | 52.20 | 56.50 | 55.20 | 59.70 | 57.80 | 62.50 |
| 11.00 | 40.80 | 46.10 | 56.00 | 60.60. | 59.60 | 64.50 | 63.20 | 68.30 | 66.70 | 72.20 | 69.90 | 75.60 |
| 12.00 | 48.50 | 54.90 | 66.70 | 72.10 | 70.90 | 76.70 | 75.20 | 81.30 | 79.40 | 85.90 | 83.20 | 90.00 |
| 13.00 | 57.00 | 64.40 | 78.30 | 84.60 | 83.30 | 90.00 | 88.20 | 95.40 | 93.20 | 101.00 | 97.70 | 105.00 |
| 14.00 | 66.10 | 74.70 | 90.80 | 98.20 | 96.60 | 104.00 | 102.00 | 111.00 | 108.00 | 117.00 | 113.00 | 122.00 |
| 16.00 | 86.30 | 97.50 | 119.00 | 128.00 | 126.00 | 136.00 | 134.00 | 145.00 | 141.00 | 153.00 | 148.00 | 160.00 |
| 18.00 | 109.00 | 123.00 | 150.00 | 162.00 | 160.00 | 173.00 | 169.00 | 183.00 | 179.00 | 193.00 | 187.00 | 202.00 |
| 20.00 | 135.00 | 152.00 | 185.00 | 200.00 | 197.00 | 213.00 | 209.00 | 226.00 | 221.00 | 239.00 | 231.00 | 250.00 |
| 22.00 | 163.00 | 184.00 | 224.00 | 242.00 | 238.00 | 258.00 | 253.00 | 273.00 | 267.00 | 289.00 | 279.00 | 302.00 |
| 24.00 | 194.00 | 219.00 | 267.00 | 288.00 | 284.00 | 307.00 | 301.00 | 325.00 | 318.00 | 344.00 | 333.00 | 360.00 |
| 26.00 | 228.00 | 258.00 | 313.00 | 339.00 | 333.00 | 360.00 | 353.00 | 382.00 | 373.00 | 403.00 | 390.00 | 422.00 |
| 28.00 | 264.00 | 299.00 | 363.00 | 393.00 | 386.00 | 418.00 | 409.00 | 443.00 | 432.00 | 468.00 | 453.00 | 490.00 |
| 30.00 | 303.00 | 343.00 | 417.00 | 451.00 | 443.00 | 479.00 | 470.00 | 508.00 | 496.00 | 537.00 | 520.00 | 562.00 |
| 32.00 | 345.00 | 390.00 | 474.00 | 513.00 | 504.00 | 546.00 | 535.00 | 578.00 | 565.00 | 644.00 | 592.00 | 640.00 |
| 34.00 | 390.00 | 440.00 | 535.00 | 579.00 | 570.00 | 616.00 | 604.00 | 653.00 | 638.00 | 690.00 | 668.00 | 722.00 |
| 36.00 | 437.00 | 494.00 | 600.00 | 649.00 | 638.00 | 690.00 | 677.00 | 732.00 | 715.00 | 773.00 | 749.00 | 810.00 |
| 38.00 | 487.00 | 550.00 | 669.00 | 723.00 | 711.00 | 769.00 | 754.00 | 815.00 | 797.00 | 861.00 | 834.00 | 902.00 |
| 40.00 | 539.00 | 610.00 | 741.00 | 801.00 | 788.00 | 852.00 | 835.00 | 903.00 | 883.00 | 954.00 | 925.00 | 1000.00 |
| 42.00 | 594.00 | 672.00 | 817.00 | 883.00 | 869.00 | 940.00 | 921.00 | 996.00 | 973.00 | 1050.00 | 1020.00 | 1100.00 |
| 44.00 | 652.00 | 738.00 | 897.00 | 970.00 | 954.00 | 1030.00 | 1010.00 | 1090.00 | 1070.00 | 1150.00 | 1120.00 | 1210.00 |
| 46.00 | 713.00 | 806.00 | 980.00 | 1060.00 | 1040.00 | 1130.00 | 1100.00 | 1190.00 | 1170.00 | 1260.00 | 1220.00 | 1320.00 |
| 48.00 | 776.00 | 878.00 | 1070.00 | 1150.00 | 1140.00 | 1230.00 | 1200.00 | 1300.00 | 1270.00 | 1370.00 | 1330.00 | 1440.00 |
| 50.00 | 843.00 | 953.00 | 1160.00 | 1250.00 | 1230.00 | 1330.00 | 1310.00 | 1410.00 | 1380.00 | 1490.00 | 1450.00 | 1560.00 |
| 52.00 | 911.00 | 1030.00 | 1250.00 | 1350.00 | 1330.00 | 1440.00 | 1410.00 | 1530.00 | 1490.00 | 1610.00 | 1560.00 | 1690.00 |
| 54.00 | 983.00 | 1110.00 | 1350.00 | 1460.00 | 1440.00 | 1550.00 | 1520.00 | 1650.00 | 1610.00 | 1740.00 | 1690.00 | 1820.00 |
| 56.00 | 1060.00 | 1190.00 | 1450.00 | 1570.00 | 1540.00 | 1670.00 | 1640.00 | 1770.00 | 1730.00 | 1870.00 | 1810.00 | 1960.00 |
| 58.00 | 1130.00 | 1280.00 | 1560.00 | 1680.00 | 1660.00 | 1790.00 | 1760.00 | 1900.00 | 1860.00 | 2010.00 | 1950.00 | 2100.00 |
| 60.00 | 1210.00 | 1370.00 | 1670.00 | 1800.00 | 1770.00 | 1920.00 | 1880.00 | 2030.00 | 1990.00 | 2150.00 | 2080.00 | 2250.00 |
| 62.00 | 1300.00 | 1460.00 | 1780.00 | 1930.00 | 1890.00 | 2050.00 | 2010.00 | 2170.00 | 2120.00 | 2290.00 | 2220.00 | 2400.00 |
| 64.00 | 1380.00 | 1560.00 | 1900.00 | 2050.00 | 2020.00 | 2180.00 | 2140.00 | 2310.00 | 2260.00 | 2440.00 | 2370.00 | 2560.00 |
| 66.00 | 1470.00 | 1660.00 | 2020.00 | 2180.00 | 2150.00 | 2320.00 | 2270.00 | 2460.00 | 2400.00 | 2600.00 | 2520.00 | 2720.00 |
| 68.00 | 1560.00 | 1760.00 | 2140.00 | 2320.00 | 2280.00 | 2460.00 | 2410.00 | 2610.00 | 2550.00 | 2760.00 | 2670.00 | 2890.00 |
| 70.00 | 1650.00 | 1870.00 | 2270.00 | 2450.00 | 2410.00 | 2610.00 | 2560.00 | 2770.00 | 2700.00 | 2920.00 | 2830.00 | 3060.00 |
Product Structures
-
6×12-7FC
| Diámetro nominal（mm） | Peso aproximado （kg/100m） | Resistencia a la tensión nominal (Mpa) | |||
| 1470 | 1570 | 1670 | 1770 | ||
| Carga de rotura mín（KN） | |||||
| 8 | 16.1 | 19.7 | 21.0 | 22.3 | 23.7 |
| 9 | 20.3 | 24.9 | 26.6 | 28.3 | 30.0 |
| 9.3 | 21.7 | 26.6 | 28.4 | 30.2 | 32.0 |
| 10 | 25.1 | 30.7 | 32.8 | 34.9 | 37.0 |
| 11 | 30.4 | 37.2 | 39.7 | 42.2 | 44.8 |
| 12 | 36.1 | 44.2 | 47.3 | 50.3 | 53.3 |
| 12.5 | 39.2 | 48.0 | 51.3 | 54.5 | 57.8 |
| 13 | 42.4 | 51.9 | 55.5 | 59.0 | 62.5 |
| 14 | 49.2 | 60.2 | 64.3 | 68.4 | 72.5 |
| 15.5 | 60.3 | 73.8 | 78.8 | 83.9 | 88.9 |
| 16 | 64.3 | 78.7 | 84.0 | 89.4 | 94.7 |
| 17 | 72.5 | 88.8 | 94.8 | 101 | 107 |
| 18 | 81.3 | 99.5 | 106 | 113 | 120 |
| 18.5 | 85.9 | 105 | 112 | 119 | 127 |
| 20 | 100 | 123 | 131 | 140 | 148 |
| 21.5 | 116 | 142 | 152 | 161 | 171 |
| 22 | 121 | 149 | 159 | 169 | 179 |
| 24 | 145 | 177 | 189 | 201 | 213 |
| 24.5 | 151 | 184 | 197 | 210 | 222 |
| 26 | 170 | 208 | 222 | 236 | 250 |
| 28 | 197 | 241 | 257 | 274 | 290 |
Product Structures
-
6×24-7FC
| Diámetro nominal（mm） | Peso aproximado （kg/100m） | Resistencia a la tensión nominal (Mpa) | |||
| 1470 | 1570 | 1670 | 1770 | ||
| Carga de rotura mín（KN） | |||||
| 8 | 20.4 | 26.3 | 28.1 | 29.9 | 31.7 |
| 9 | 25.8 | 33.3 | 35.6 | 37.9 | 40.1 |
| 10 | 31.8 | 41.2 | 44.0 | 46.8 | 49.6 |
| 11 | 45.8 | 37.2 | 53.2 | 56.6 | 60.0 |
| 12 | 53.7 | 44.2 | 63.3 | 67.3 | 71.4 |
| 13 | 62.3 | 51.9 | 74.3 | 79.0 | 83.8 |
| 14 | 81.4 | 60.2 | 86.2 | 91.6 | 97.1 |
| 16 | 103 | 78.7 | 113 | 120 | 127 |
| 18 | 127 | 99.5 | 142 | 152 | 120 |
| 20 | 154 | 123 | 176 | 187 | 148 |
| 22 | 183 | 149 | 213 | 226 | 179 |
| 24 | 215 | 177 | 253 | 269 | 213 |
| 26 | 249 | 208 | 297 | 316 | 250 |
| 28 | 197 | 241 | 345 | 367 | 290 |
| 30 | 286 | 370 | 396 | 421 | 446 |
| 32 | 326 | 421 | 450 | 479 | 507 |
| 34 | 368 | 476 | 508 | 541 | 573 |
| 36 | 412 | 533 | 570 | 606 | 642 |
| 38 | 459 | 594 | 635 | 675 | 716 |
| 40 | 509 | 659 | 703 | 748 | 793 |
